TOUCH
SCREEN
MIXERS
DOUGH CAPACITY 30 to 45 Kg
SMART LINE
• Mixing capacity from 30 to 45 kg.
• Recommended hydration from 55% to 80%.
• Available in single-phase 230V.
• 6 spiral speeds, from 70 to 210 RPM.
• Bowl speed: ratio 1:7 from spiral speed.
• Control panel at the top of the machine.
• Retractable castors.
• Heavy-duty stainless steel bowl, spiral arm and breaking bar.
• Safety stainless steel grid bowl protection.
​
+ Touch screen control panel
+ Capacity of saving up to 20 recipe
+ Temperature laser sensor
+ LED light inside the bowl
+ Reverse Rotation
​
TECHNICAL SPECIFICATION
DOUGH CAPACITY 30 kg to 200 kg

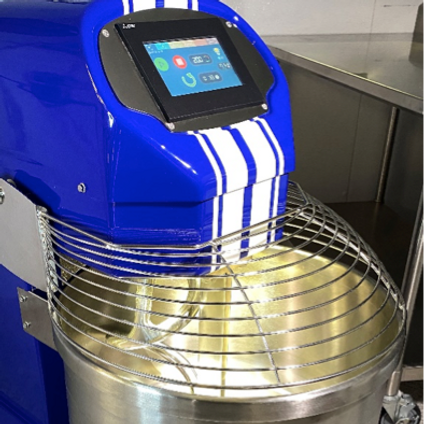

QUEEN LINE
Professional mixer, version with 2 motors, variable speeds from 50 to 300 rpm, plus reverse bowl rotation. Touch screen control panel, temperature laser sensor, and LED light into the bowl.
​
• INVERTER - This technology allows the spiral speed to adapt to any hydration.
• 2 motors / 3-phase / 220V.
Size from 60 to 200.
​
• Bowl speed 14 rpm, Spiral arm variable speeds from 50 to 300 rpm.
• 2 independent motors for spiral and bowl.
• Reverse bowl rotation.
​
• Control panel at the top of the machine.
​
• High resistance stainless steel bowl. Thick and wide breaking bar and reinforced spiral.
​
• Reinforced belt transmission, ideal for hydration above 55%.
​
​
ADD-ON ACCESSORIES:
​
• Plexiglas bowl protection.
​
• Customized colors.
TECHNICAL SPECIFICATION
EXCLUSIVE FEATURES
TOUCH SCREEN CONTROL PANEL
All the controls are enclosed in a touch screen panel, where you can store up to 12 recipes. Any operator will be able to use the saved recipes and create the same dough day after day, regardless of his skills. This fantastic device is provided by Mitsubishi.
TEMPERATURE LASER SENSOR
Detects the instant dough temperature, keeping it always under control, and avoid overheating the dough. In the Queen line, the mixer will stop automatically when it reaches the temperature you pre-set.
.jpg)
LED LIGHT BOWL
Illuminates the dough and facilitates viewing inside the bowl.
The LED light does not heat the dough.
REVERSE BOWL ROTATION
It only works up to 100 rpm, it allows you to mix without compacting the dough, perfect for some particular recipes with pre-ferments, as the biga.
